Product Description

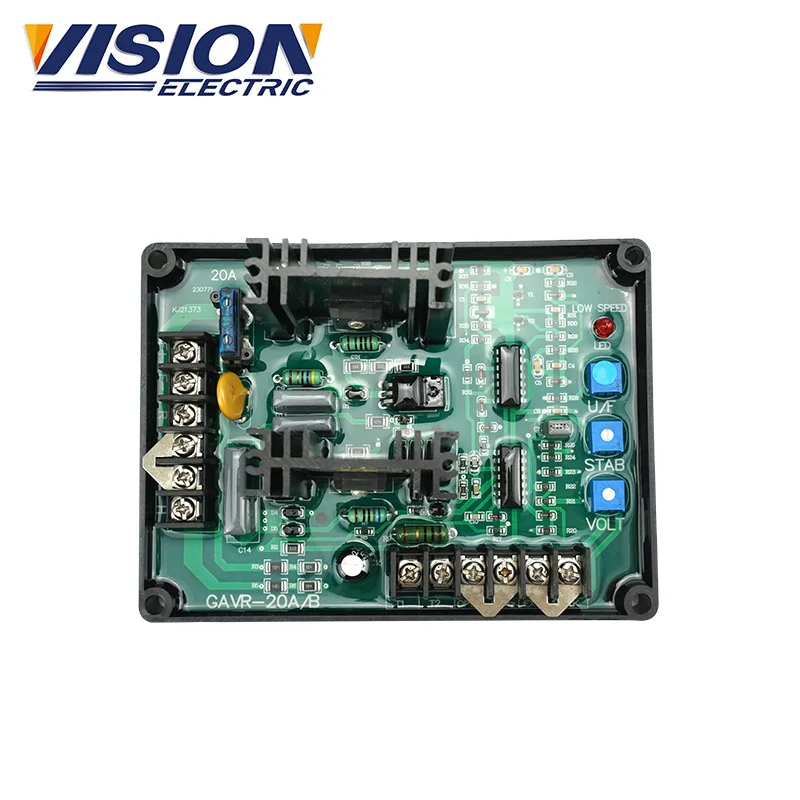

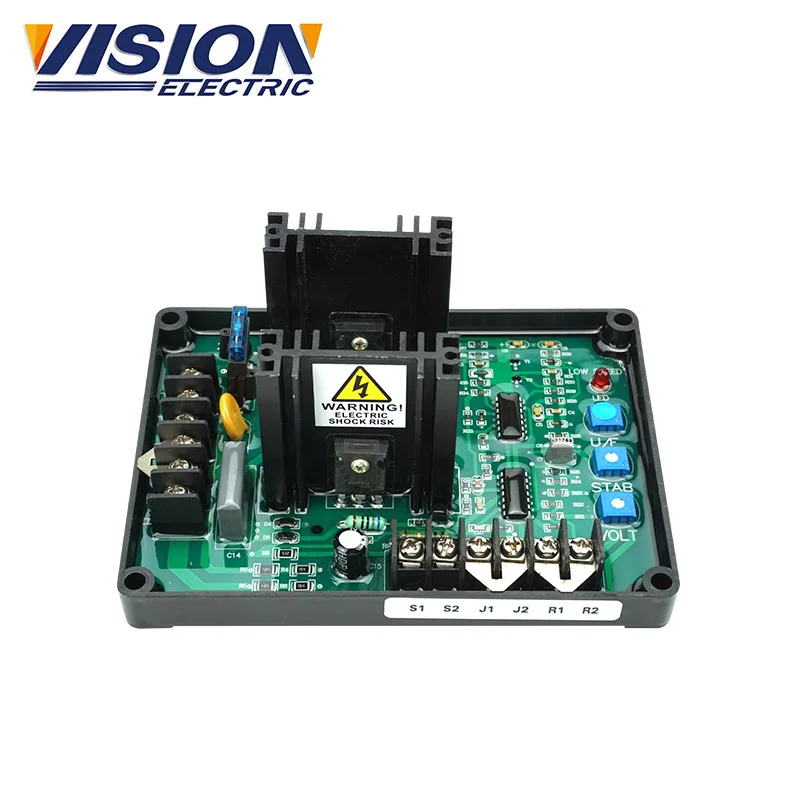

AVR-GAVR-20A
– Automatic Voltage Regulator Sensing Input 120V or 240V.
– GAVR 20A regulator is a compatible replacement for GAVR20A.
Function
–Voltage regulation < +/-1%.
– Soft start voltage ramping.
– Sensing voltage loss protection.
– 120 or 240 Vac sensing, jumper selectable.
– Under frequency roll off protection.
– With under frequency LED indicator.
Advantage
– 10 years production experiences,over 10 times the mold improved, makes the body and parts in perfect match.
– Nice outside and strong inside.
– Nice outside and strong inside.
– External Volts Adjustment +/-7%with 1KΩ1watt trimmer.
– Factory setting: the turning point frequency in the 50Hz system is 47Hz.
Performance
-Factory used the advanced equipment to produce, assembly and inspect.
-To ensure the high accuracy.
-And the HD panel used to make everything showed clear.
|
AVR GAVR-20A
|
||||||
|
Sensing Input Voltage
|
220/400VAC
|
|||||
|
Power Input Voltage
|
180~240VAC,
|
|||||
|
Output Voltage
|
Max.90VDC@240VACinput
|
|||||
|
Current
|
Continuous 6A ,Intermittent 15A for 10s
|
|||||
|
Resistance
|
Min.10ΩMax 100Ω
|
|||||
|
Unit Power Dissipation
|
Max.8Watt
|
|||||
|
60Hz system
|
the low frequency protection turning point frequency is 57Hz
|
|||||
