Specification

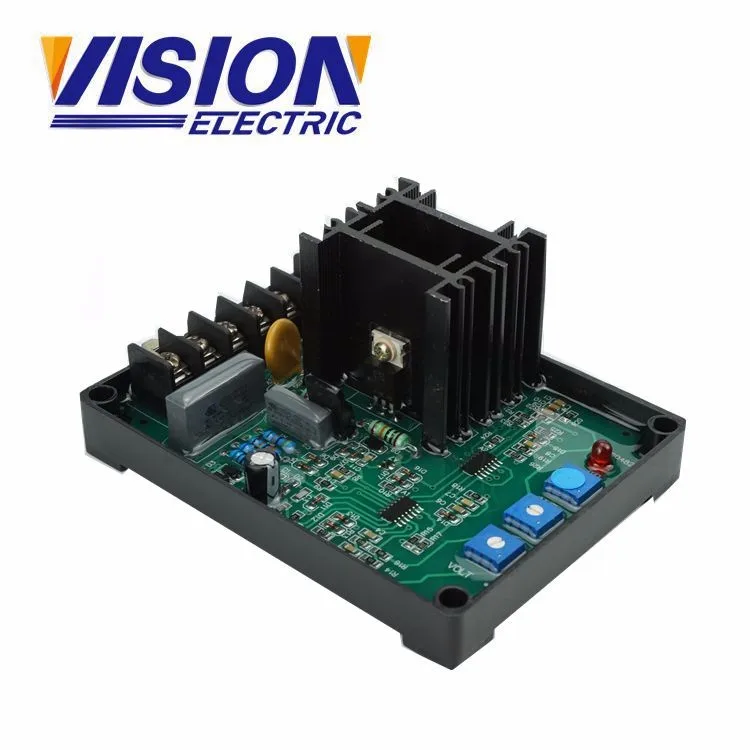

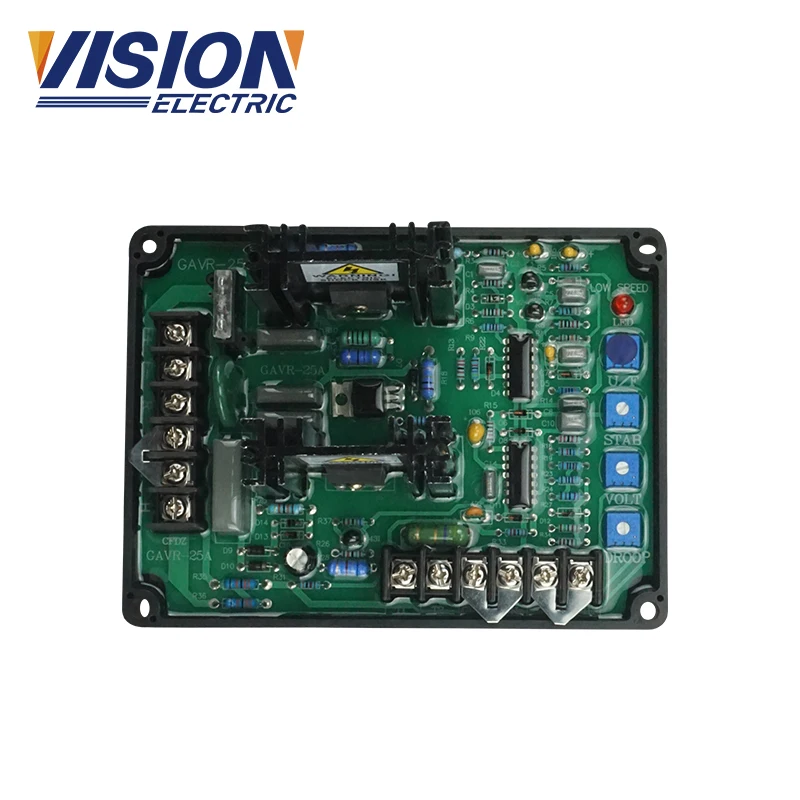

-AVR GAVR 25A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.
– AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
– Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR.
– Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of ± 1.5%.
-Nice outside and strong inside.
Performance
-Factory used the advanced equipment to produce, assembly and inspect.
-To ensure the high accuracy.
-And the HD panel used to make everything showed clear.
|
MODEL
|
SENSING INPUT
|
POWER INPUT
|
MAGNETIC FIELD OUTPUT
|
||
|
Voltage
|
Voltage
|
Voltage
|
Current
|
||
|
GAVR-8A
|
110/220/400VAC
|
95-270VAC,1 phase，2 wire
|
max 95VDC，240VAC
|
Continuous 8A
|
|
|
GAVR-12A
|
190-240VAC
|
180~240VAC, 1phase 2wire
|
95VDC
|
Continuous 12A
|
|
|
GAVR-15A
|
220/400VAC |
170-270VAC,1 phase，2 wire |
max 95VDC，240VAC |
Continuous 15A |
|
|
GAVR-15B
|
|||||
|
GAVR-20A
|
220/400VAC |
170-270VAC,1 phase，2 wire |
max 95VDC，240VAC |
Continuous 20A |
|
|
GAVR-20B
|
|||||
|
GAVR 25A
|
220/400VAC
|
180-240VAC, 1 Phase 2 wire
|
max 90V dc ，240VAC
|
Continuous 15A
|
|
|
GAVR-35A
|
220VAC
|
170-270VAC,1 phase，2 wire
|
max 95VDC，240VAC
|
Continuous 35A
|
|
|
GAVR-50A
|
220VAC
|
90-180VAC,1 phase，2 wire
|
max 95VDC，240VAC
|
Continuous 50A
|
|
