Product Description
|

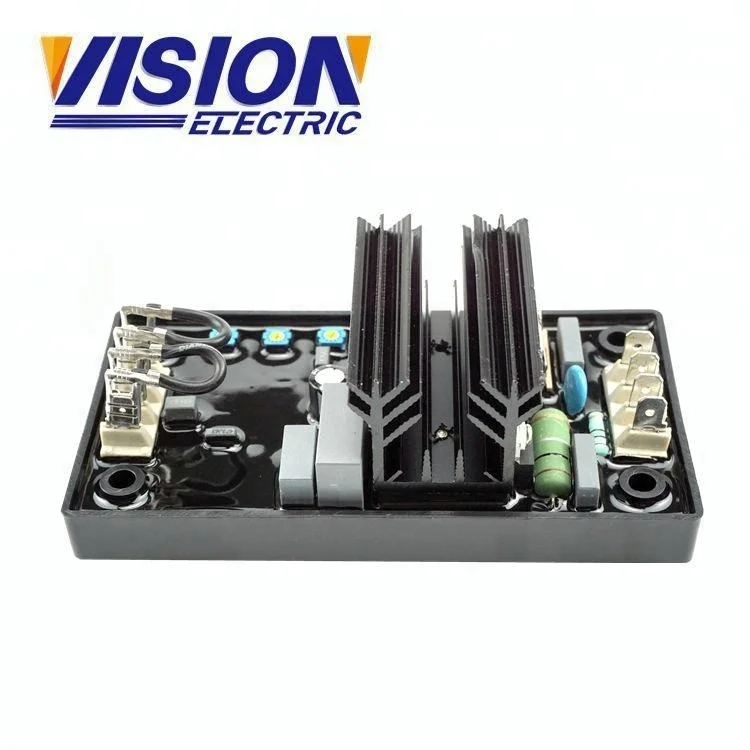

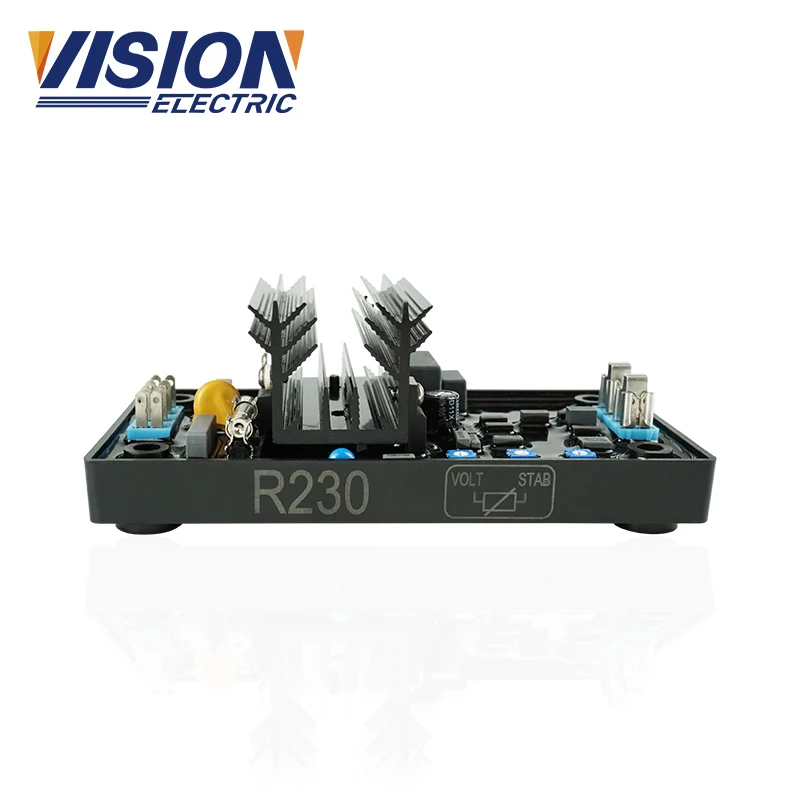

220V voltage regulator AVR R230 for power generator
|
||
|
Magnetic field output
|
||
|
Voltage
|
Max 100VDC at 120VCD input,
|
|
|
Current
|
Continous 8A,intermittent 10A-10S
|
|
|
Power input
|
120(90-140)VAC,1 phase 2 wires,
|
|
|
Voltage Regulation
|
<±1% RMS with 4% engine governing
|
|
Specification
220v voltage regulator AVR R230 for power generator is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator.
Applicatiion
In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Features
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of ± 1.5%.
