Factory Prices Universal Generator Avr Gavr-15a Voltage Regulator

Product Description





Specification

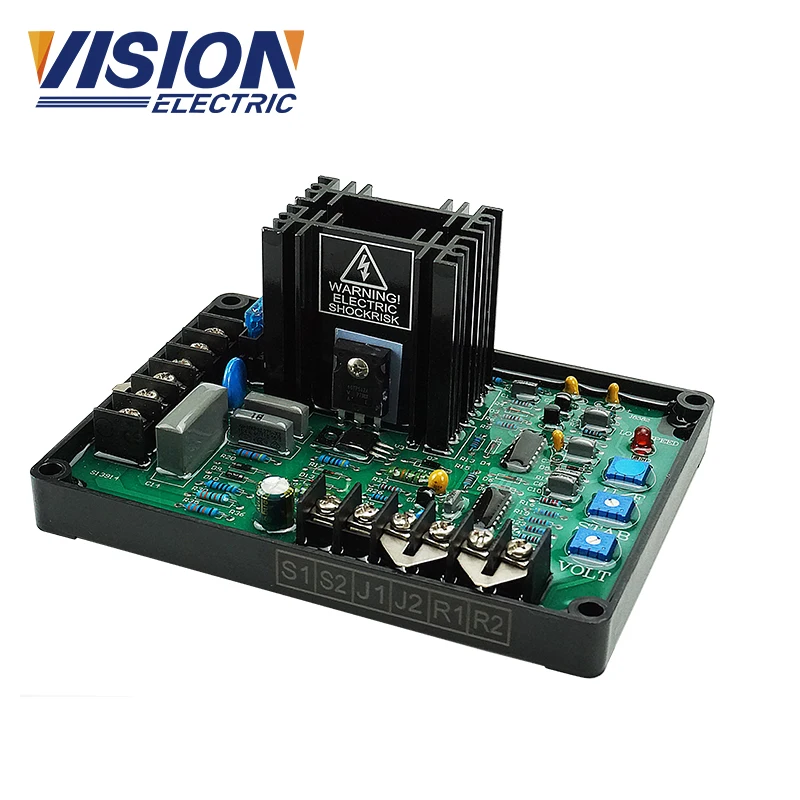

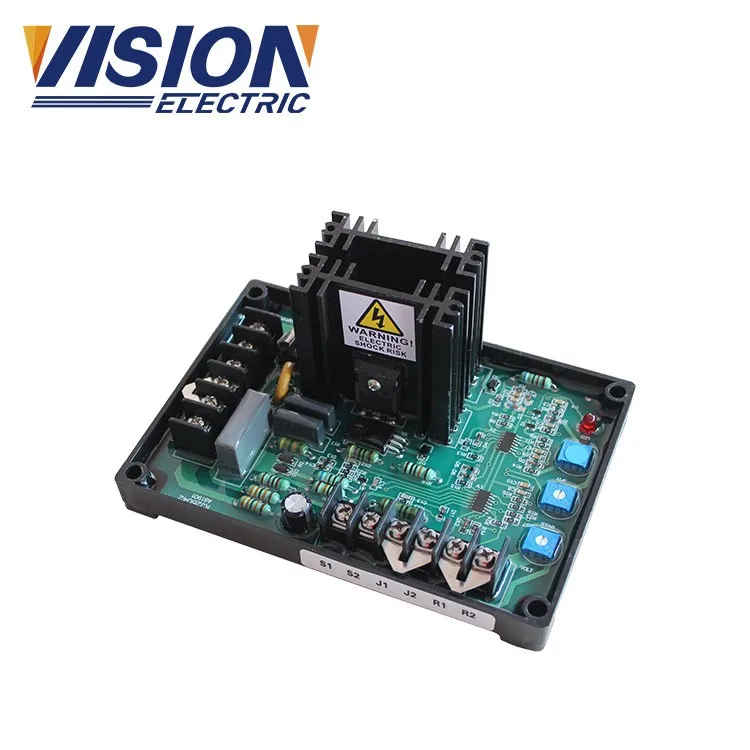

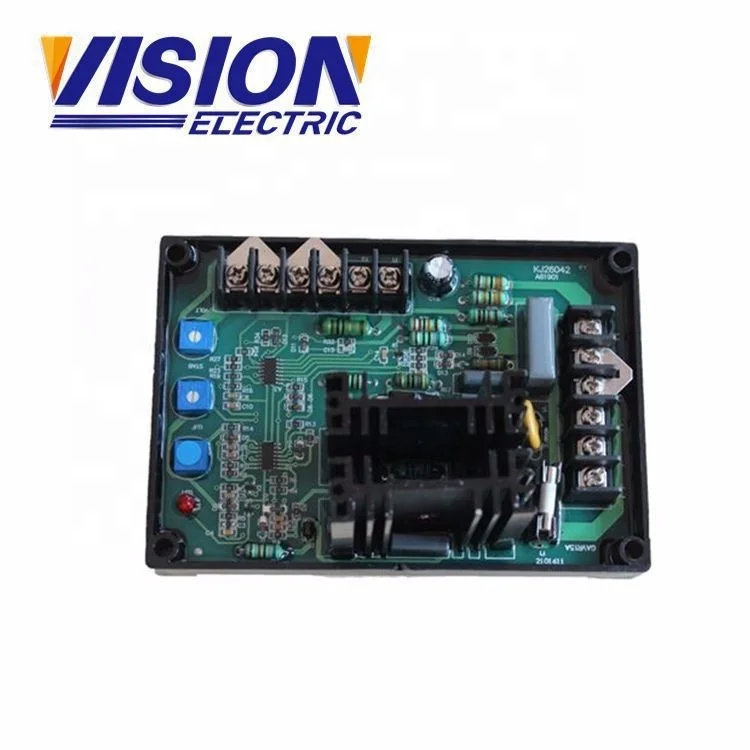

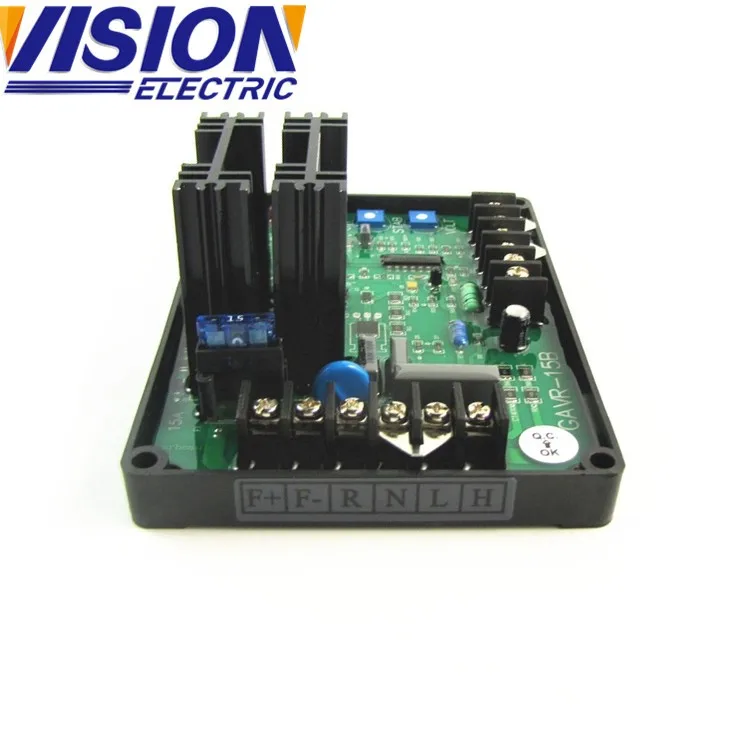

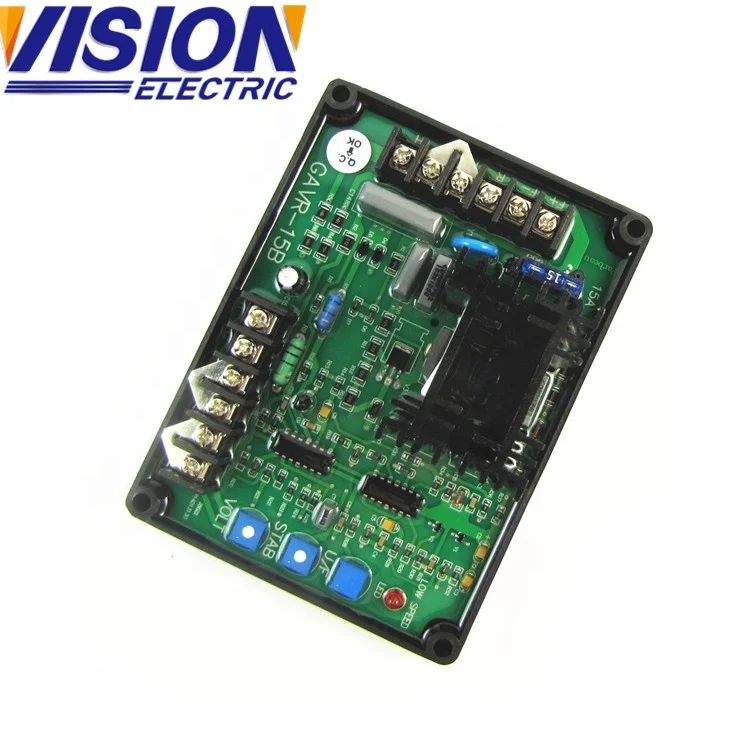

 – General Universal generator AVR GAVR 15B 15Awith   aviation VR potentiometer is a half-wave phase controlled   thyristor type Automatic Voltage Regulator and forms part   of the excitation system for a brushless generator.

 Function

 – Positive voltage build up from residual levels is ensured by   the use of proficient semiconductors in the power circuitry of   the AVR. Which is linked with the main stator windings and   the exciter field windings to offer closed loop control of the   output voltage with load regulations of ± 1.5%.

  Advantage

  – In addition to regulating the generator voltage, the AVR     circuitry includes under speed and sensing loss protection to   ensure safe, reliable control of the generator.


Performance

-Factory used the advanced equipment to produce, assembly and inspect.

-To ensure the high accuracy.

-And the HD panel used to make everything showed clear.

 -10 years production experiences,over 10 times the mold improved, makes the body and parts in perfect match.

– Nice outside and strong inside.

Sensing input
Voltage
220/400 Vac
Power input
Voltage
170-270Vac ,1 phase ,2 wire.
Magnetic field output

Voltage
Max. 95 Vdc , 240 Vac
Current
Continuous 15A
Voltage Regulation
< +/-1% (with 4% engine governing)
Frequency
50/60 Hz jumper selectable
