Generator Avr Circuit Diagram Avr As480 For Genset Parts

Product Description

AVR AS480

Automatic Voltage Regulator Sensing Input 120V or 240V

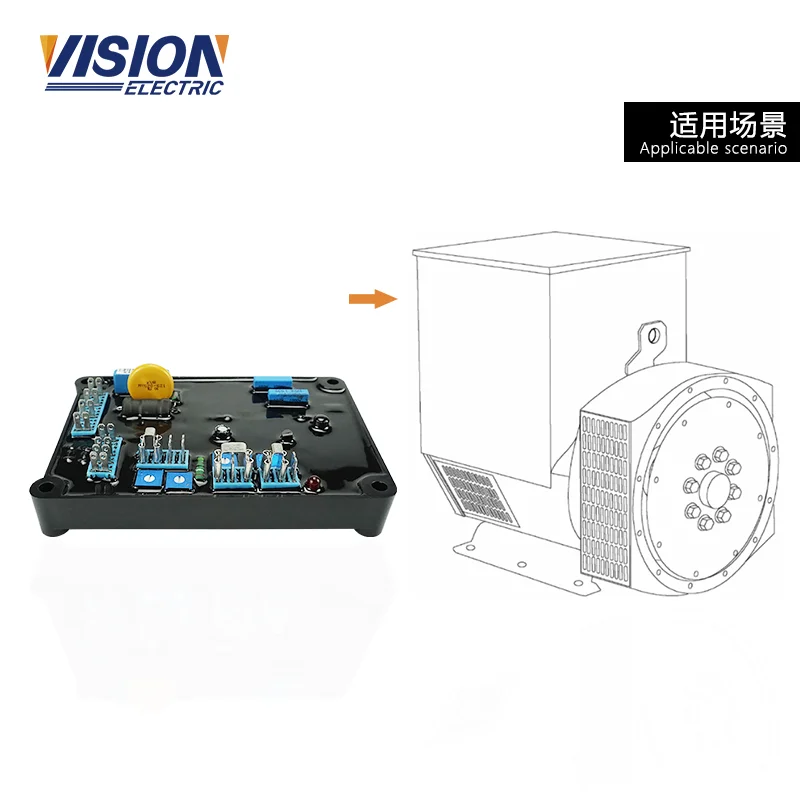

AS480 self excited brushless type genset voltage regulator is a compatible replacement for AS480

Product Name
Generator Universal AVR AS480

Sensing/Power input
Voltage
120(95-132Vac)240(190-264Vac),1 phase 2 wire jumper selectable
Frequency
50/60 Hz jumper selectable
Output

Voltage
Max. 90 Vdc @ 207 Vac input
Current
Continuous 4A,Intermittent 6A
Voltage Regulation
< +/-1% (with 4% engine governing)

Features

* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator
