Products Description

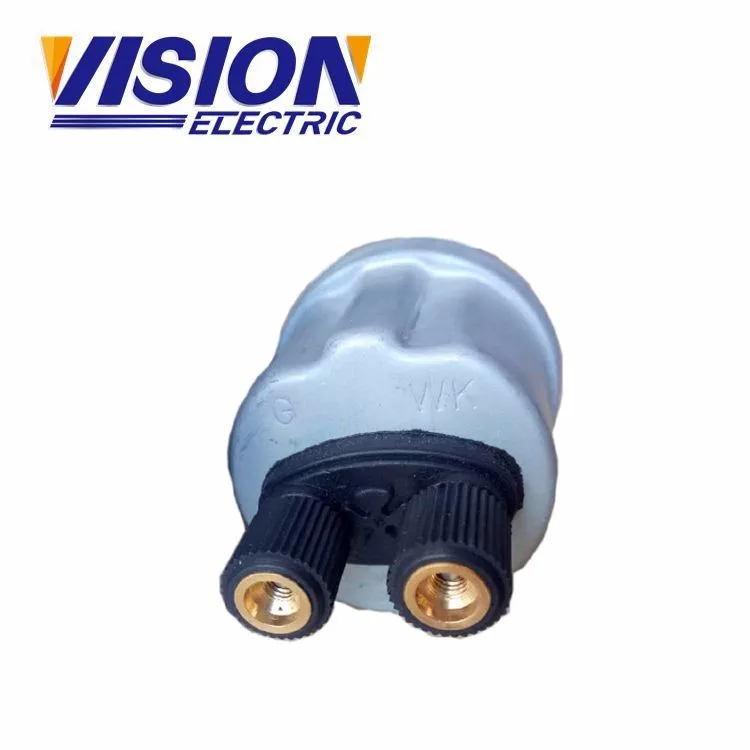

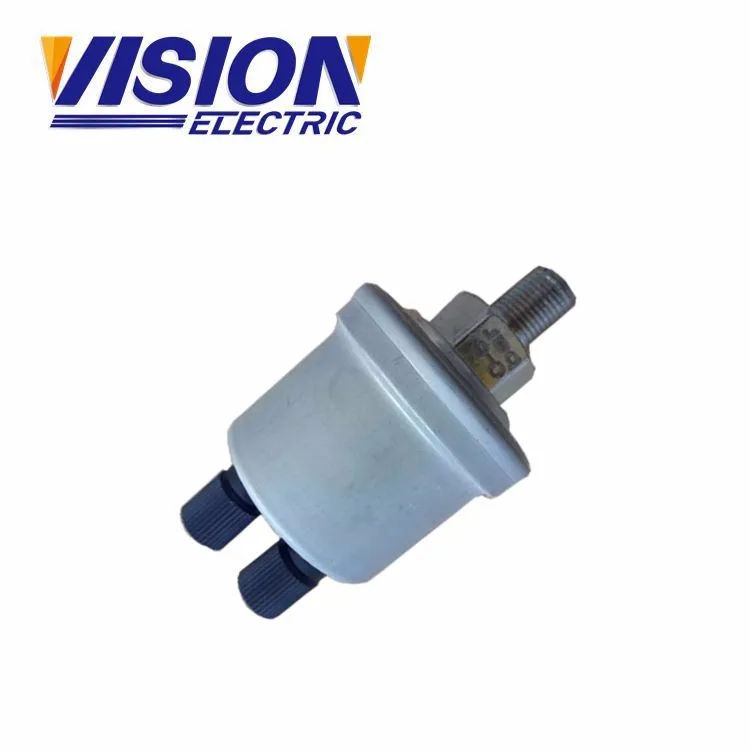

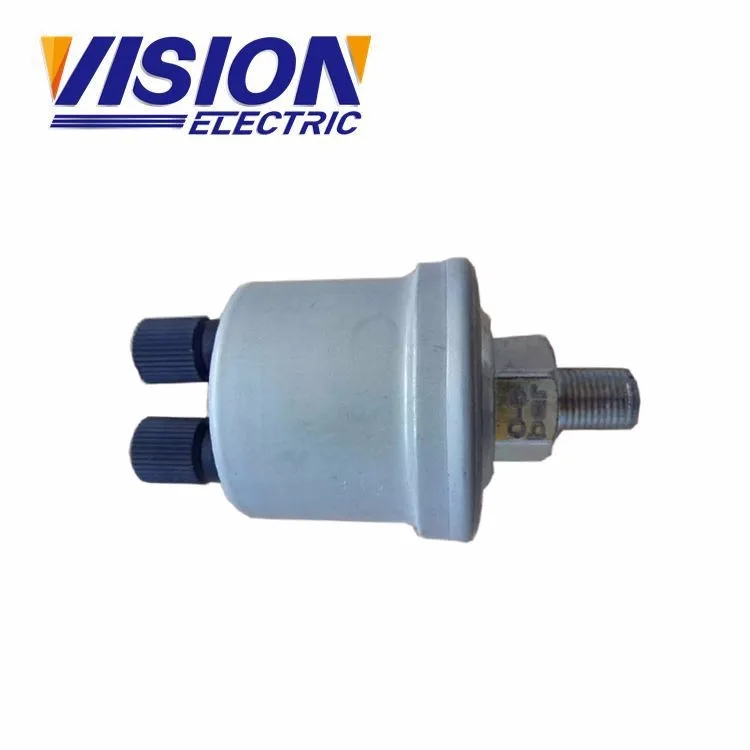

Oil Pressure Sensor VDO

VDO is kind of protection equipment for the generators which is connected to the controller to protection the generator operation in normal type. When the generator in unnormal level, the sensor will send the signal to the controller then the controller will send warning to make sure you will find the problem was.


Generator VDO Oil Pressure Sensor Replace For Original VDO

PRESSURE(BAR)

0

2

4

6

8

10

RESISTANCE VALUE

10±3

52±4

10±3

88±4

124±5

184±10

Warning Temp:0.8±0.3bar

Thread:1/8 NPT

Weight:115G
