Product Description

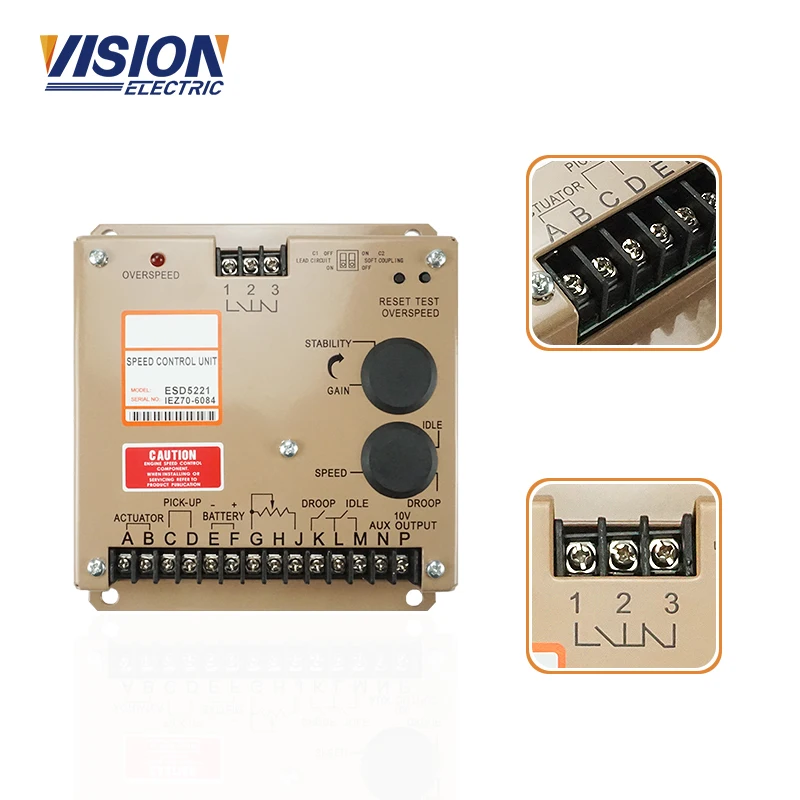

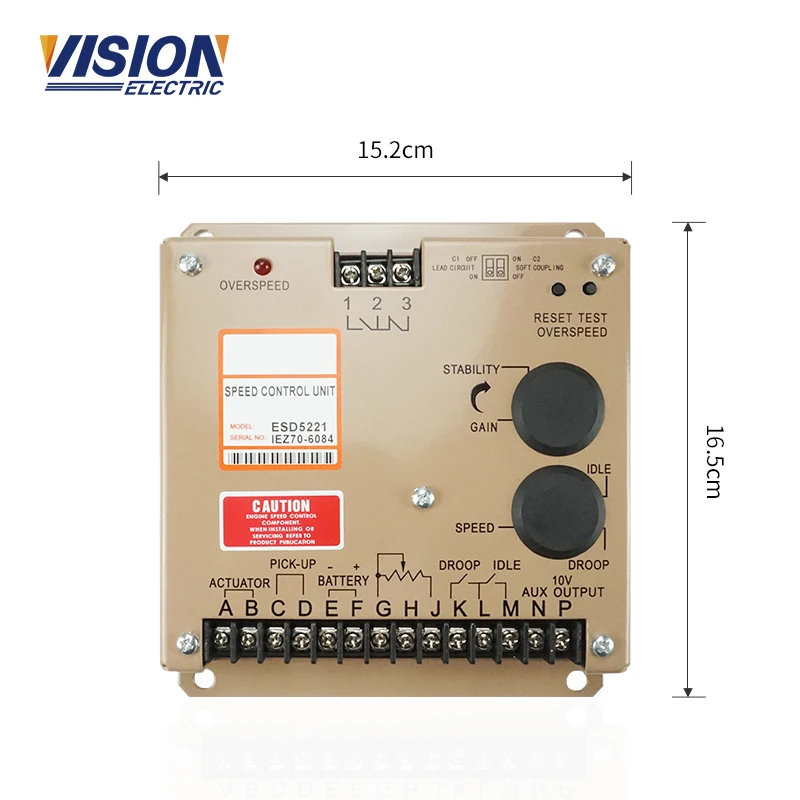

Governor ESD5221
The ESD series governor are precise speed controls designed and manufactured in various configurations to meet application requirements using the latest analog and digital control technologies.
A wide variety of application needs can be satisfied with ESD series constant or variable speed governing, in isochronous or droop operation.
Product Name | Generator Governor Automatic Control Speed Controller ESD5221 | ||
Working Voltage | 12-32Vdc | ||
Output Current Range | 0-5A | ||
Speed Sensor Signal | 0.5-120V RMS | ||
Temperature Range |
–40~85C | ||
Ralative Humidity | <95% | ||
Speed Range | 1K-7.5K HZ | ||
Speed Trim Range | +/-200 HZ | ||
Features | Product No | Description | ||||
ESD2200 Series | * Isochronous Operation * Adjustable PID Functions * Speed Trim Input * Hard Potted | ESD2210-12 or -24 | 12 or 24 VDC / Standard Unit | |||
ESD2244-12 or -24 | 12 or 24 VDC / Standard Unit | |||||
ESD5100 Series | * Isochronous, Variable, and Droop * Adjustable PID Functions * Speed Trim Input & Idle Control * Auxiliary Input / +10V Supply | ESD5111 | Multi VDC / Standard Unit | |||
ESD5120 | Multi VDC / Light-Force (Low Current) | |||||
ESD5131 | Multi VDC / Selectable Soft Coupling and Lead Circuit | |||||
ESD5500E Series | * Isochronous, Variable, & Droop * Speed Ramping & Starting Fuel * Soft Coupling & Lead Circuit * Adjustable Idle Control * Auxiliary Input / +10V Supply | ESD5500E | Multi VDC / Standard Unit | |||
ESD5520E | Multi VDC / Light-Force (Low Current) | |||||
ESD5522E | Multi VDC / Light-Force (Low Current) / Enhanced Droop/ Smoke Limiting / Suitable For EFC Forward Acting (Normally Closed) | |||||
ESD5221 | * Isochronous, Variable, & Droop * Adjustable PID Functions * Speed Trim & Idle Control * Lead Circuit * Auxiliary Input / +10V Supply | ESD5221 | Multi VDC / Single Element Speed Switch – Overspeed | |||
ESD5550/ 5570 Series | * Isochronous, Variable, & Droop * Built-In Speed Switch – Overspeed * Speed Ramping & Starting Fuel * Soft Coupling & Lead Circuit *Auxiliary Input / +10V Supply | ESD5550 | Multi VDC / Standard Unit | |||
ESD5570 | Multi VDC / Light-Force (Low Current) | |||||
ESD5300 Series | ESD5330 | 24 VDC / Standard UnitESD5340 | ||||
ESD5340 | 24 VDC / Full-Fuel Starting Aid | |||||
