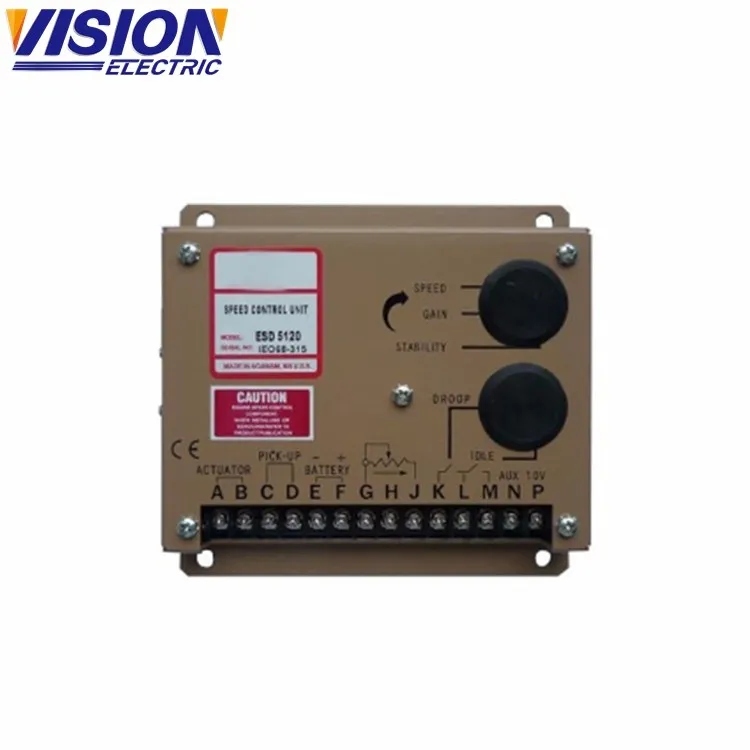

Electric Governor Esd5120 For Generator

Product Description

Governor ESD5120

The ESD series governor are precise speed controls designed and manufactured in various configurations to meet application requirements using the latest analog and digital control technologies.

A wide variety of application needs can be satisfied with ESD series constant or variable speed governing, in isochronous or droop operation.

Product Name
Electric Governor ESD5120 For Generator

Working Voltage
12Vdc 24Vdc
Output Current
50mA
Speed Sensor Signal
0.5-120V RMS
Temperature Range
40~85C
Ralative Humidity
<95%
Speed Range
1K-7.5K HZ
Speed Trim Range
+/-200 HZ
Features
Product No
Description
ESD2200 Series

* Isochronous Operation
* Adjustable PID Functions
* Speed Trim Input
* Hard Potted
ESD2210-12 or -24
12 or 24 VDC / Standard Unit
ESD2244-12 or -24
12 or 24 VDC / Standard Unit
ESD5100 Series
* Isochronous, Variable, and Droop
* Adjustable PID Functions
* Speed Trim Input & Idle Control
* Auxiliary Input / +10V Supply
ESD5111
Multi VDC / Standard Unit
ESD5120
Multi VDC / Light-Force (Low Current)
ESD5131
Multi VDC / Selectable Soft Coupling and Lead Circuit
ESD5500E Series
* Isochronous, Variable, & Droop
* Speed Ramping & Starting Fuel
* Soft Coupling & Lead Circuit
* Adjustable Idle Control
* Auxiliary Input / +10V Supply
ESD5500E
Multi VDC / Standard Unit
ESD5520E
Multi VDC / Light-Force (Low Current)
ESD5522E
Multi VDC / Light-Force (Low Current) / Enhanced Droop/ Smoke Limiting / Suitable For  EFC Forward
Acting (Normally Closed)
ESD5221
* Isochronous, Variable, & Droop
* Adjustable PID Functions
* Speed Trim & Idle Control
*  Lead Circuit
* Auxiliary Input / +10V Supply
ESD5221
Multi VDC / Single Element Speed Switch – Overspeed
ESD5550/ 5570 Series
* Isochronous, Variable, & Droop
* Built-In Speed Switch – Overspeed
* Speed Ramping & Starting Fuel
* Soft Coupling & Lead Circuit
*Auxiliary Input / +10V Supply
ESD5550
Multi VDC / Standard Unit
ESD5570
Multi VDC / Light-Force (Low Current)
ESD5300 Series
ESD5330
24 VDC / Standard UnitESD5340
ESD5340
24 VDC / Full-Fuel Starting Aid
