VSQ Automatic Transfer Switch (ATS) is used under conditions of AC660V 50/60Hz or DC250V. It is two-stage PC class type with electromagnetism drive structure, which can make fast load transfer (transfer time ≤80ms) of two power circuits. It can be widely used for national one-class load, for example: high buildings, post, telecommunications, coal mines, ships, industrial assembly lines, health care, military facilities etc. The two power circuits can be grid, auto start genset, storage battery etc.
When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the generator set; when the mains power returns to normal, it will automatically switch to restore the mains power supply to the load after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling operation.

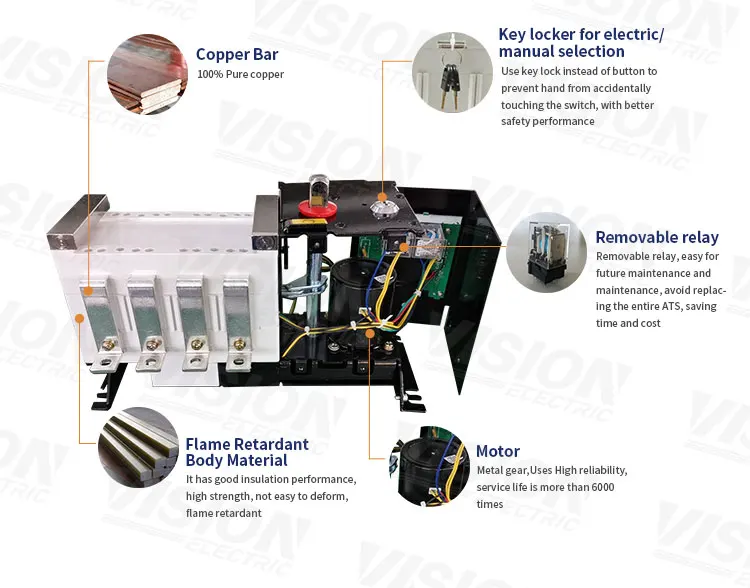

* Good installation performance
* The adoption of zero-crossing detect technique, emergency can be forced to set zero (simultaneously cut off two power supply)
* with obvious on-off indication, padlock and other functions, to achieve the isolation between the power supply and load
* High reliability, over 6000 times service life
* High degree of automation
* The adoption of zero-crossing detect technique, emergency can be forced to set zero (simultaneously cut off two power supply)
* with obvious on-off indication, padlock and other functions, to achieve the isolation between the power supply and load
* High reliability, over 6000 times service life
* High degree of automation
* Good electromagnetic compatibility, strong anti-interference ability, no external interference * The switch has multiple input / output interfaces, which is convenient for remote PLC control and system automation.
Main Technology Parameters
|

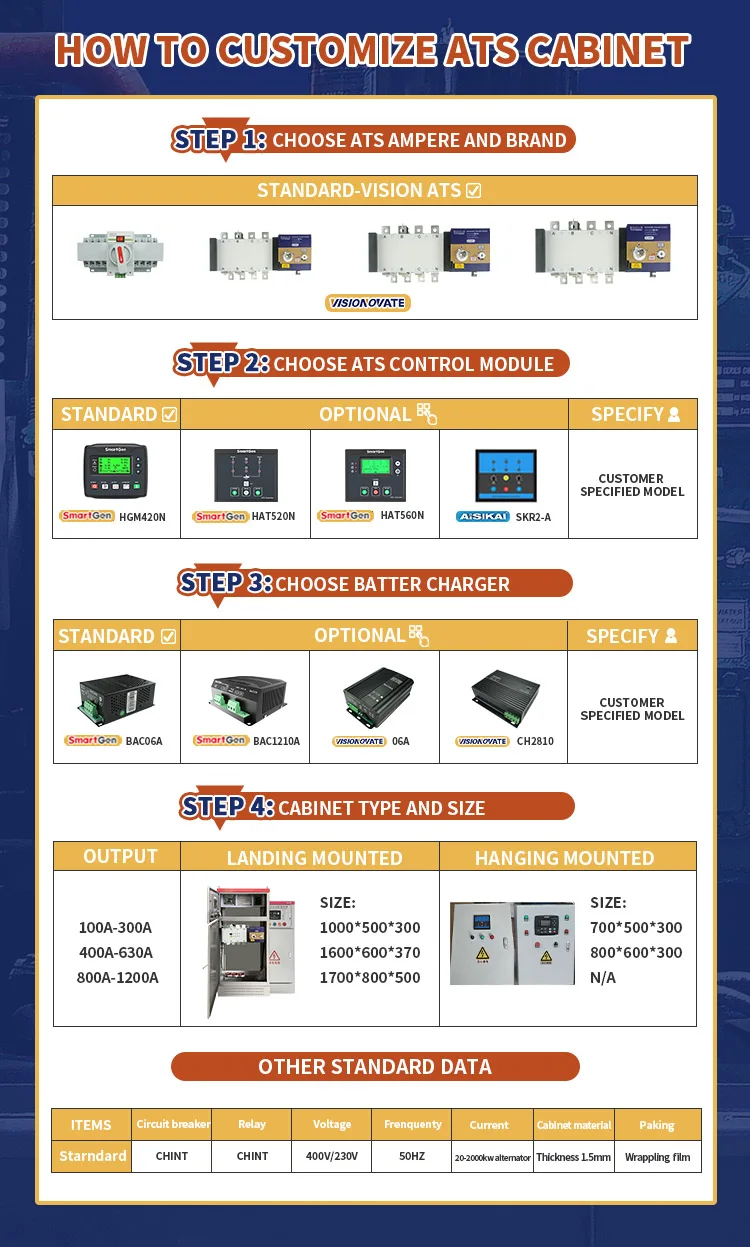

Recommended Cabinet Installation Dimension
|
||||
|
Model
|
Recommended Cabinet Dimension (L*W*H cm)
|
Recommended Cabinet Dimension (L*W*H cm)
|
||
|
VSQ3-100A-VSQ3-250A
|
50*40*80
|
50*25*60
|
||
|
VSQ3-300A-VSQ3-630A
|
60*50*180
|
55*45*160
|
||
|
VSQ3-800A -VSQ31250A
|
80*60*220
|
75*60*180
|
||
|
VSQ3-1600A
|
80*60*220
|
75*60*200
|
||
|
VSQ3-2500A-VSQ3-3200A
|
80*80*220
|
75*80*200
|
||
|
Reference only ,please according to the actual conditions.
|
||||
|
Product name
|
Net weight(KG)
|
DIMENSION/SET (cm)
|
DIMENSION/CTN(CM)
|
|
4
|
28*12*17
|
38.5*30*37
|
|
|
7
|
34.5*21.5*23
|
45.5*37.5*25.5
|
|
|
9.5
|
42*21.5*26
|
46.5*45*29
|
|
|
17.5
|
53*30*33.5
|
53*30*33.5
|
|
|
18.5
|
53*30*33.5
|
53*30*33.5
|
|
|
47.5
|
72*40*39
|
72*40*39
|
|
|
50
|
72*40*39
|
72*40*39
|
|
|
52.5
|
72*40*39
|
72*40*39
|
