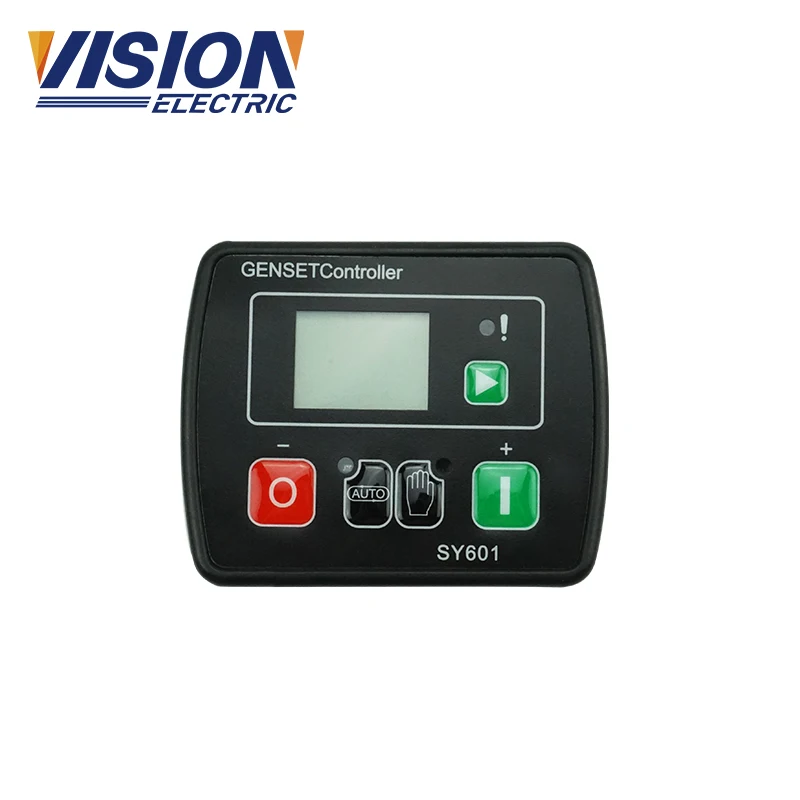

AUTO Key / indicator light

This button is used for automatic operation mode setting, controller running in automatic mode, the key is the LED indicator

lights. Controller according to the “remote boot input signal” effective or not, to control the generator to start running and

stop.

MAN Key / indicator light

This button is used to set the manual operation mode, the controller operating in manual mode, the key is the LED indicator

lights. The controller is controlled by the “START” and “STOP” key to control the starting and running of the generator

START/ Parameter set “+” button

This button is used to manually start the operation of generating units. When the controller is set up in manual mode, the

generator can be started by this key.

When entering the parameter setting operation, the key is used to increase the value

STOP/RESET/ Parameter settings reduce “-” key

This button is used to manually stop the generator, the controller is set in manual operation mode, long press this key for more

than two seconds, can stop generating units.

If there is a fault output, the light press this key controller can be relieved of the failure of the lock.

When entering the parameter setting operation, the key is used to reduce the number of values.

Fault indicator light

When the controller has a warning, the fault indicator light is shining;

When there is a breakdown, the fault indicator light
