Product Description

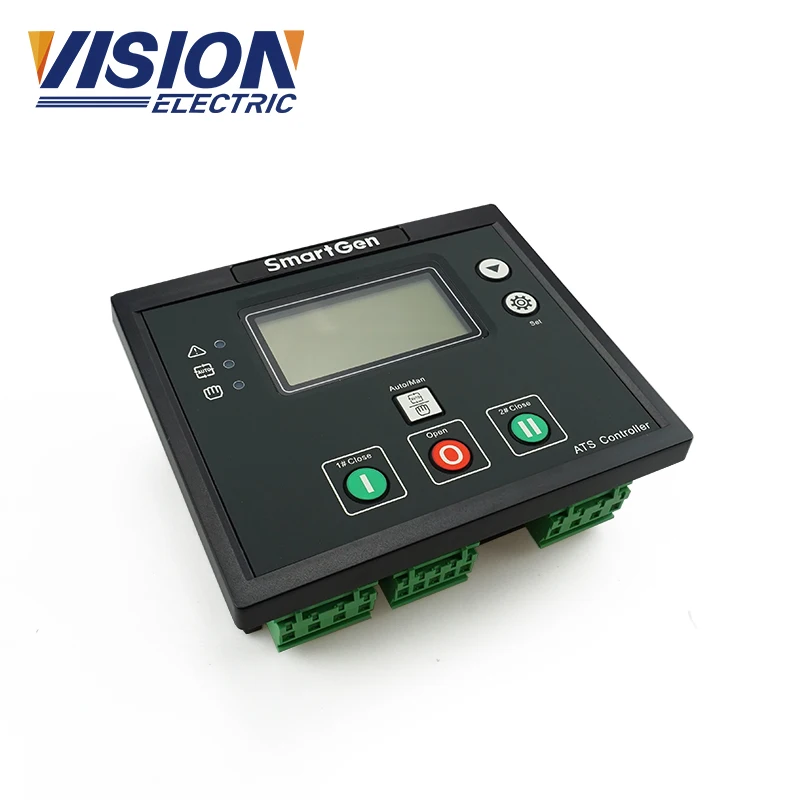

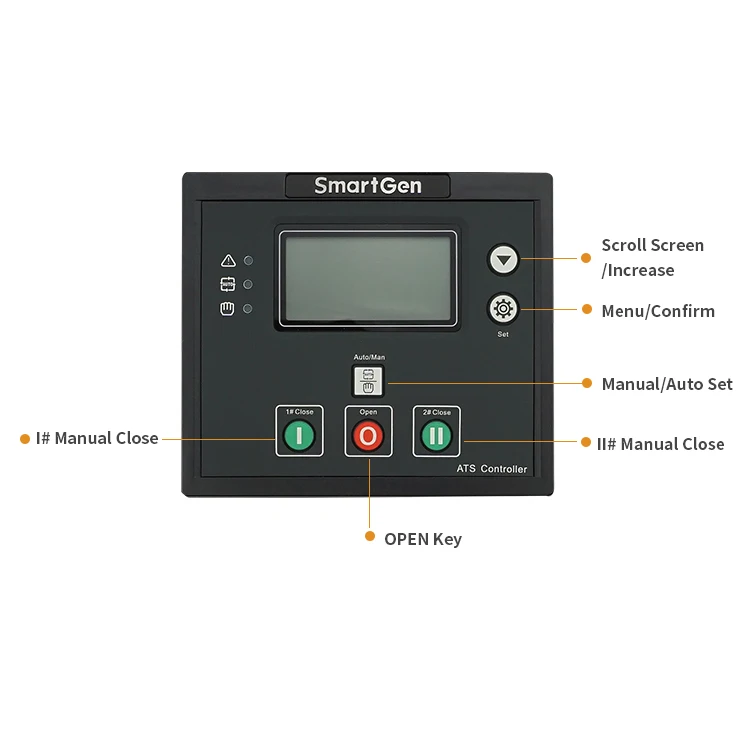

HAT560N SERIES ATS
HAT560N SERIES ATS CONTROLLER IS INTELLIGENT DUAL-SUPPLY MODULE WITH CONFIGURABLE FUNCTION, AUTOMATIC MEASUREMENT, LCD DISPLAY,
AND DIGITAL COMMUNICATION. IT COMBINES DIGITAL, INTELLIGENCE AND NETWORKING. AUTOMATIC MEASUREMENT AND CONTROL CAN REDUCE
INCORRECT OPERATION. IT IS AN IDEAL OPTION FOR ATS.
AND DIGITAL COMMUNICATION. IT COMBINES DIGITAL, INTELLIGENCE AND NETWORKING. AUTOMATIC MEASUREMENT AND CONTROL CAN REDUCE
INCORRECT OPERATION. IT IS AN IDEAL OPTION FOR ATS.
|
Display
|
LCD(132*64)
|
||||||
|
Language
|
Chinese & English
|
||||||
|
AC System
|
1P2W/2P3W/3P3W/3P4W
|
||||||
|
Alternator Voltage
|
(30~360)V(ph-N)
|
||||||
|
Alternator Frequency
|
50/60Hz
|
||||||
|
Monitor Interface
|
LINK
|
||||||
|
Programmable Interface
|
LINK
|
||||||
|
RTC(Real Time Clock)
|
●
|
||||||
|
Scheduled Start Genset
|
●
|
||||||
|
Circulate Start Genset
|
●
|
||||||
|
Switch Over Priority
|
●
|
||||||
|
Applicable Switch Type
|
PC Two-stage, PC Three-stage, CB and CC switch
|
||||||
|
DC Supply
|
DC(8-35)V
|
||||||
|
Case Dimensions(mm)
|
139*120*48
|
||||||
|
Panel Cutout(mm)
|
130*111
|
||||||
|
Operating Temp
|
(-25~+70)℃
|
||||||
