Product Description

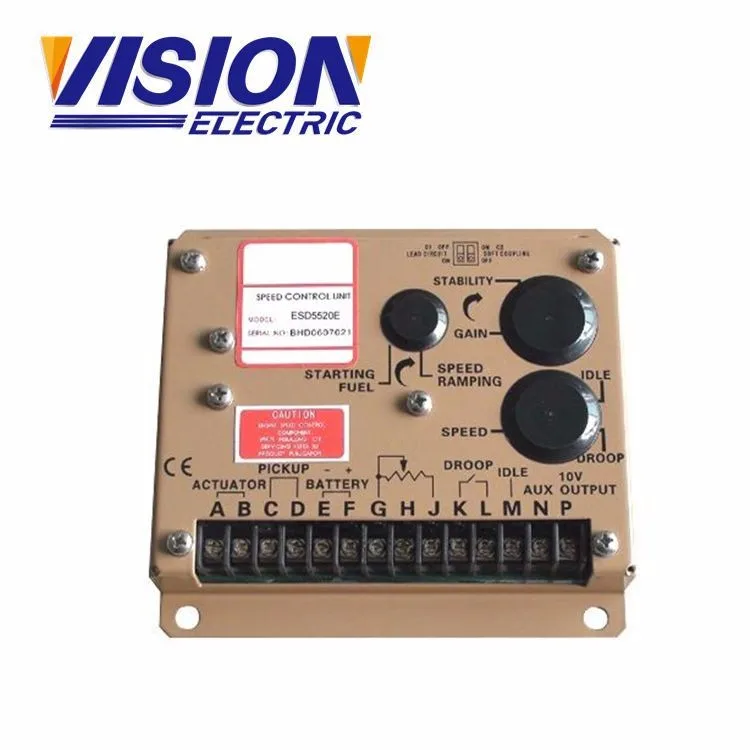

Governor ESD5520
The ESD series governor are precise speed controls designed and manufactured in various configurations to meet application requirements using the latest analog and digital control technologies.
A wide variety of application needs can be satisfied with ESD series constant or variable speed governing, in isochronous or droop operation.
|
Product Name
|
Generator Control Speed Governor ESD5520
|
||
|
Working Voltage
|
12-32Vdc
|
||
|
Output Current Range
|
0-5A
|
||
|
Speed Sensor Signal
|
0.5-120V RMS
|
||
|
Temperature Range
|
–40~85C
|
||
|
Ralative Humidity
|
<95%
|
||
|
Speed Range
|
1K-7.5K HZ
|
||
|
Speed Trim Range
|
+/-200 HZ
|
||
|
Features
|
Product No
|
Description
|
||||
|
ESD2200 Series
|
* Isochronous Operation
* Adjustable PID Functions * Speed Trim Input * Hard Potted |
ESD2210-12 or -24
|
12 or 24 VDC / Standard Unit
|
|||
|
ESD2244-12 or -24
|
12 or 24 VDC / Standard Unit
|
|||||
|
ESD5100 Series
|
* Isochronous, Variable, and Droop
* Adjustable PID Functions * Speed Trim Input & Idle Control * Auxiliary Input / +10V Supply |
ESD5111
|
Multi VDC / Standard Unit
|
|||
|
ESD5120
|
Multi VDC / Light-Force (Low Current)
|
|||||
|
ESD5131
|
Multi VDC / Selectable Soft Coupling and Lead Circuit
|
|||||
|
ESD5500E Series
|
* Isochronous, Variable, & Droop
* Speed Ramping & Starting Fuel * Soft Coupling & Lead Circuit * Adjustable Idle Control * Auxiliary Input / +10V Supply |
ESD5500E
|
Multi VDC / Standard Unit
|
|||
|
ESD5520E
|
Multi VDC / Light-Force (Low Current)
|
|||||
|
ESD5522E
|
Multi VDC / Light-Force (Low Current) / Enhanced Droop/ Smoke Limiting / Suitable For EFC Forward
Acting (Normally Closed) |
|||||
|
ESD5221
|
* Isochronous, Variable, & Droop
* Adjustable PID Functions * Speed Trim & Idle Control * Lead Circuit * Auxiliary Input / +10V Supply |
ESD5221
|
Multi VDC / Single Element Speed Switch – Overspeed
|
|||
|
ESD5550/ 5570 Series
|
* Isochronous, Variable, & Droop
* Built-In Speed Switch – Overspeed * Speed Ramping & Starting Fuel * Soft Coupling & Lead Circuit *Auxiliary Input / +10V Supply |
ESD5550
|
Multi VDC / Standard Unit
|
|||
|
ESD5570
|
Multi VDC / Light-Force (Low Current)
|
|||||
|
ESD5300 Series
|
ESD5330
|
24 VDC / Standard UnitESD5340
|
||||
|
ESD5340
|
24 VDC / Full-Fuel Starting Aid
|
|||||
