Product Description
Controller DSE704
– DSE series is an intelligent range of single-set and multi- set generator control solutions, mains (utility) protection relays, lighting tower control solutions, digital automatic voltage regulators (AVR’s), remote communications devices and expansion modules.
– Each range has been designed and manufactured by our industry leading experts to deliver a range of features and benefits that set new standards across the industry.
Function
– The DSE704 is an Auto Mains Failure Control Module that offers an excellent range of engine monitoring and protection features.
– The module has been designed to monitor engine temperature, low oil pressure, fail to start, charge failure, over speed and under speed.
|

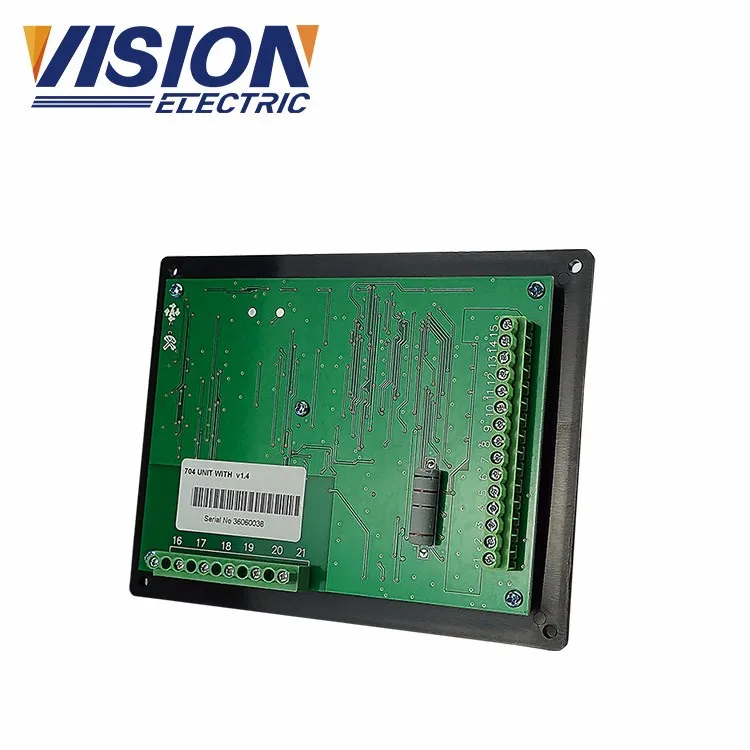

DSE Generator Control Module 704 Electronic Controller DSE704
|
||
|
DC supply
|
8V to 35V continuous
|
|
|
Current
|
12mA – 50mA
|
|
|
Frequency
|
50Hz-60Hz at rated engine speed
|
|
|
Dimensions size
|
165mm*125mm*29mm
|
|
|
Cut out
|
149mm*109mm
|
|
|
Alternator input range
|
75V to 333V absolute maximum
|
|
|

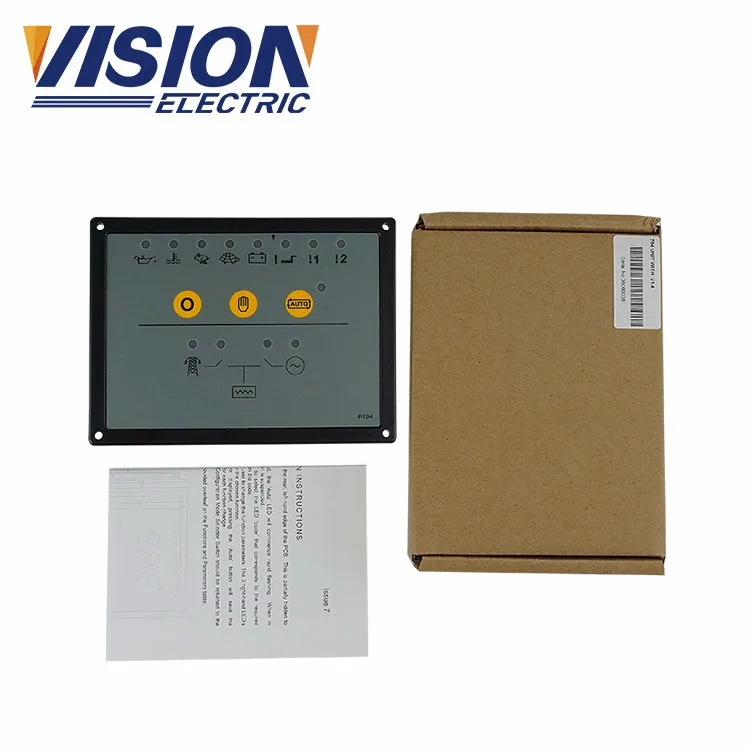

DSE Generator Control Module 704 Electronic Controller DSE704
|
||||
|
Controll Function
|
Protection Function Data display
|
Protection Function Data display
|
||
|
Emergency Stop
|
Low-Lub oil pressure
|
Speed
|
||
|
Manual Start/stop
|
Charge Failure
|
Voltage of battery
|
||
|
Distance Start/Stop
|
Emergency STOP
|
Lub Oil pressure
|
||
|
Preheat Control
|
High temperature of cooling water
|
Operation time
|
||
|
Stop/idle control
|
High Speed/Start and stop failure
|
Voltage/Current
|
||
