Product Description

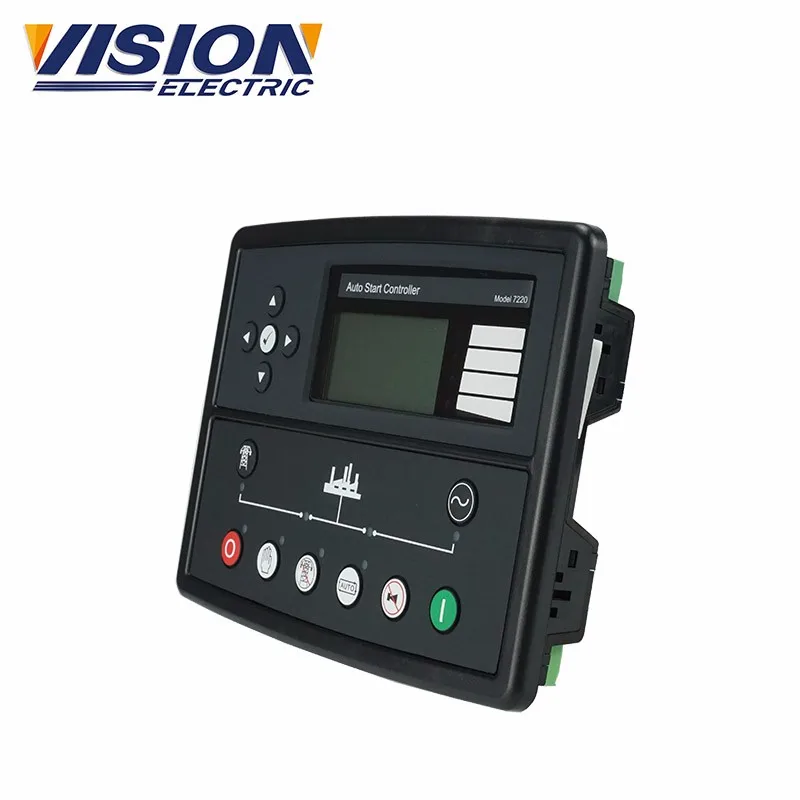

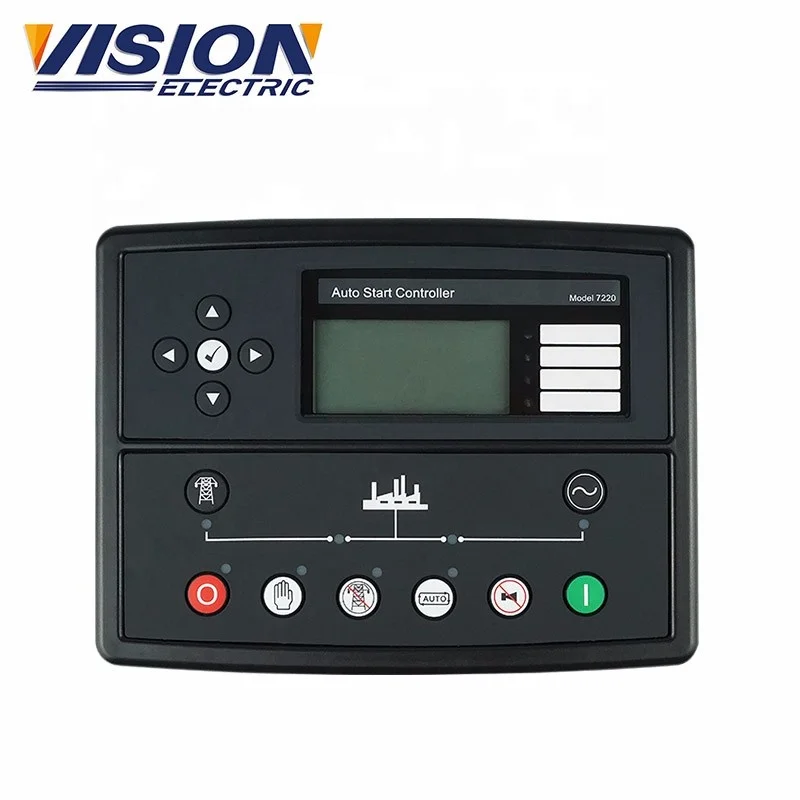

Controller DSE7120
DSE series is an intelligent range of single-set and multi-set generator control solutions, mains (utility) protection relays, lighting tower control solutions, digital automatic voltage regulators (AVR’s), remote communications devices and expansion modules.
Each range has been designed and manufactured by our industry leading experts to deliver a range of features and benefits that set new standards across the industry.
KEY FEATURES
* Large back-lit text display • Multiple display languages
• Heated display option available • DSENet® expansion compatible
• Data logging facility • Fully configurable via PC using USB communication • Front panel configuration • Efficient power save mode
• 3 phase generator sensing • 3 phase mains (utility) sensing (DSE6120 MKII only)
• Generator/load power monitoring (kW, kV A, kV Ar, pf)
• Generator/load current monitoring and protection
• Breaker control via fascia buttons • Fuel and start outputs, configurable when using CAN
• 4 configurable DC outputs • 4 configurable analogue/digital inputs
• Support for 0 to10 V & 4 to 20 mA oil pressure sensors
• 6 configurable digital inputs • Configurable staged loading outputs
• CAN, MPU and alternator speed sensing in one variant
• 3 engine maintenance alarms • Engine speed protection
• Engine hours counter
• Engine pre-heat • Engine run-time scheduler
• Engine idle control for starting & stopping • Fuel pump control
• Real time clock • Battery voltage monitoring
• Start on low battery voltage • Configurable remote start input
• 1 alternative configuration • Configurable event log (100)
• Comprehensive warning, electrical trip or shutdown protection upon fault condition
• LCD and LED alarm indication • Customisable information screens
* Large back-lit text display • Multiple display languages
• Heated display option available • DSENet® expansion compatible
• Data logging facility • Fully configurable via PC using USB communication • Front panel configuration • Efficient power save mode
• 3 phase generator sensing • 3 phase mains (utility) sensing (DSE6120 MKII only)
• Generator/load power monitoring (kW, kV A, kV Ar, pf)
• Generator/load current monitoring and protection
• Breaker control via fascia buttons • Fuel and start outputs, configurable when using CAN
• 4 configurable DC outputs • 4 configurable analogue/digital inputs
• Support for 0 to10 V & 4 to 20 mA oil pressure sensors
• 6 configurable digital inputs • Configurable staged loading outputs
• CAN, MPU and alternator speed sensing in one variant
• 3 engine maintenance alarms • Engine speed protection
• Engine hours counter
• Engine pre-heat • Engine run-time scheduler
• Engine idle control for starting & stopping • Fuel pump control
• Real time clock • Battery voltage monitoring
• Start on low battery voltage • Configurable remote start input
• 1 alternative configuration • Configurable event log (100)
• Comprehensive warning, electrical trip or shutdown protection upon fault condition
• LCD and LED alarm indication • Customisable information screens
|

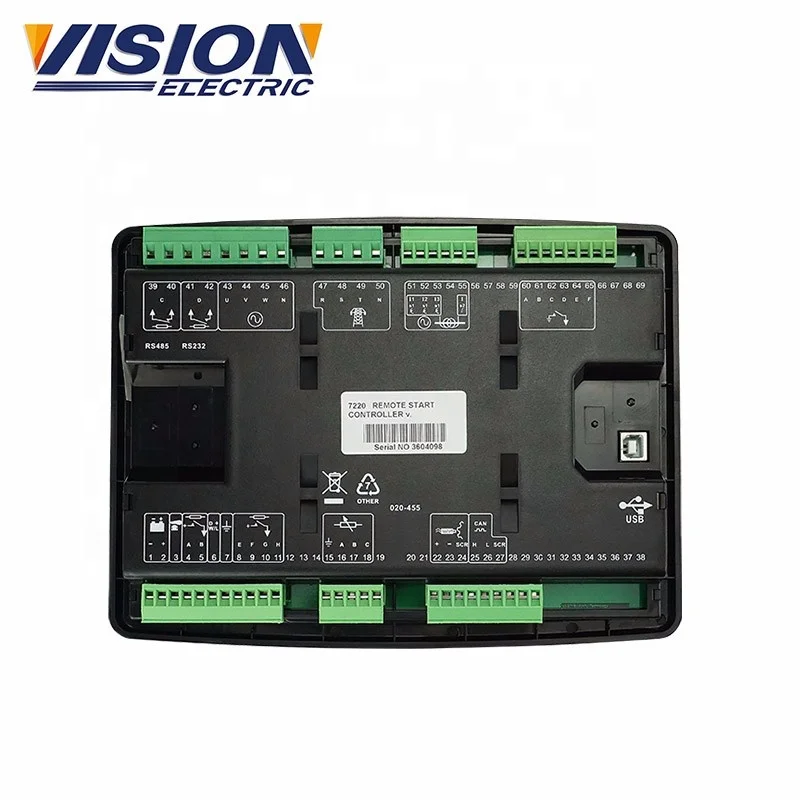

Controller DSE7120
|
||||||
|
DC SUPPLY
|
|
GENERATOR
|
|
|||
|
CONTINUOUS VOLTAGE RATING
|
8 V to 35 V Continuous
|
VOLTAGE RANGE
|
15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
|
|||
|
CRANKING DROPOUTS
|
Able to survive 0 V for 50 mS
|
FREQUENCY RANGE
|
3.5 Hz to 75 Hz
|
|||
|
MAXIMUM OPERATING CURRENT
|
290 mA at 12 V, 140 mA at 24 V
|
MAINS (UTILITY) DSE4520 ONLY
|
|
|||
|
MAXIMUM STANDBY CURRENT
|
75 mA at 12 V,40 mA at 24 V
|
VOLTAGE RANGE
|
15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
|
|||
|
MAXIMUM SLEEP CURRENT
|
0-35V
|
FREQUENCY RANGE
|
3.5 Hz to 75 Hz
|
|||
|
OUTPUTS
|
|

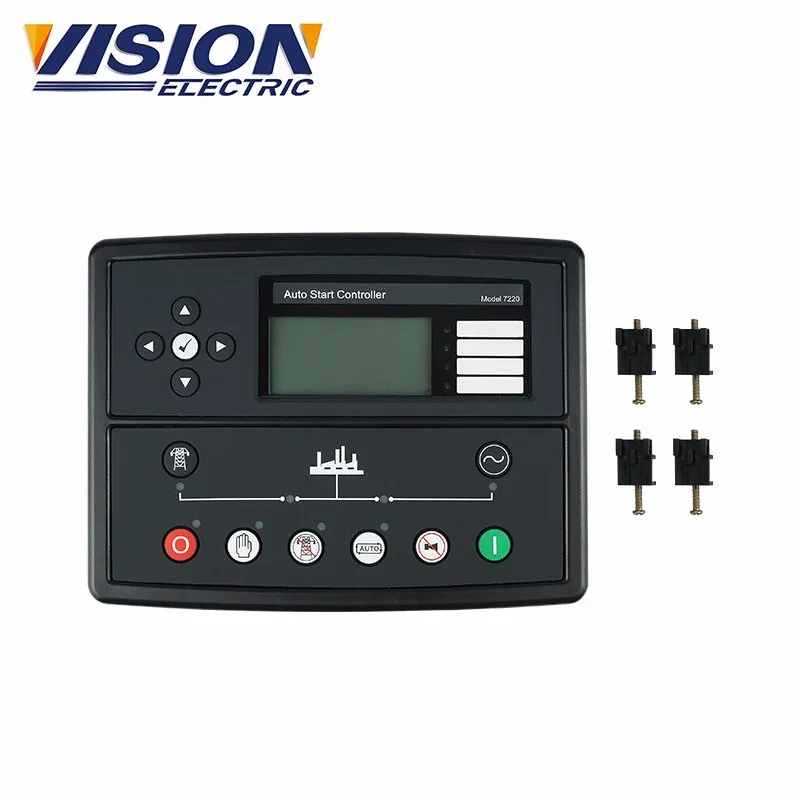

DIMENSIONS
|
|
|||
|
OUTPUT A (FUEL)
|
10 A short term, 5 A continuous,at supply voltage
|
OVERALL
|
240 mm x 181 mm x 42 mm
|
|||
|
OUTPUT B (START)
|
10 A short term, 5 A continuous,at supply voltage
|
PANEL CUT-OUT
|
220 mm x160 mm
|
|||
|
AUXILIARY OUTPUTS C,D
|
2 A DC at supply voltage
|
MAXIMUM PANEL THICKNESS
|
8 mm
|
|||
Arabic
Chinese (Simplified)
Dutch
English
French
German
Italian
Portuguese
Russian
Spanish
